20ft 40ft Prefab Modular Foldable Expandable Container Living House
Description
Foldable Expandable Containeris a type of special designed permanent house.The container houses are manufactured in a factory before being shipped to the destination and all the fittings are all assembled in the factory. Therefore, it can be installed quickly and easily. The expandable house not only can be used for shops, offices, camping houses, but also can be flat granny house, family living house, security cabin and so on.
Product features

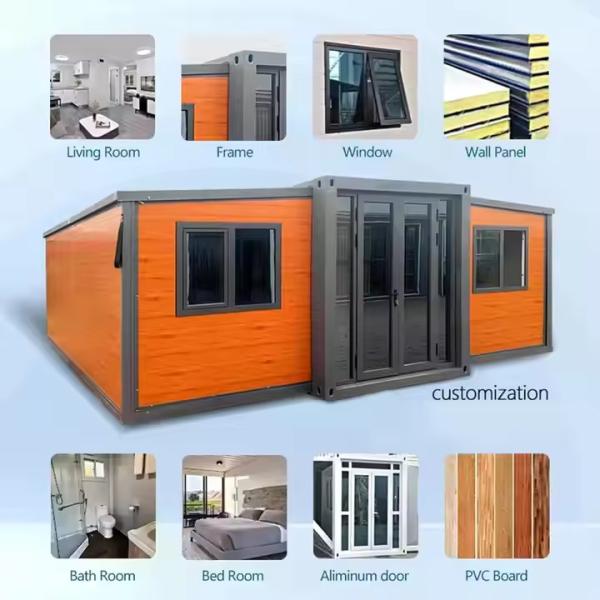

1) Customized design. All steel fabric parts, the size of prefab house and the indoor and outdoor decoration of the container can be made according to customers' requirement.
2) Cost-efficient. The container house is cost effective, durable, convenient.
3) Easy installation. The material of prefab house is light and easily to installation. 5 Workers +10 Min =1 House
4) Environmental friendly. All the materials of prefab house can be reused, meeting the requirement of environment protection.
5) We used the high quality galvanized sheet and foam as the materials of the wall and roof .So the prefab house is good for fire proofing, water proofing, etc
Advantages
First of all, the cost of container is much lower than traditional building, which is more suitable for individual small-scale operation or temporary house.
Secondly, the construction period is short. The building time is shorter than building traditional structure. It is useful especially in situation where time is critical.
Furthermore, the container building can be moved. It is convenient to assemble and disassemble and It can be moved frequently.
In addition, container house is built without construction waste and noise pollution, which is green and environmental friendly.

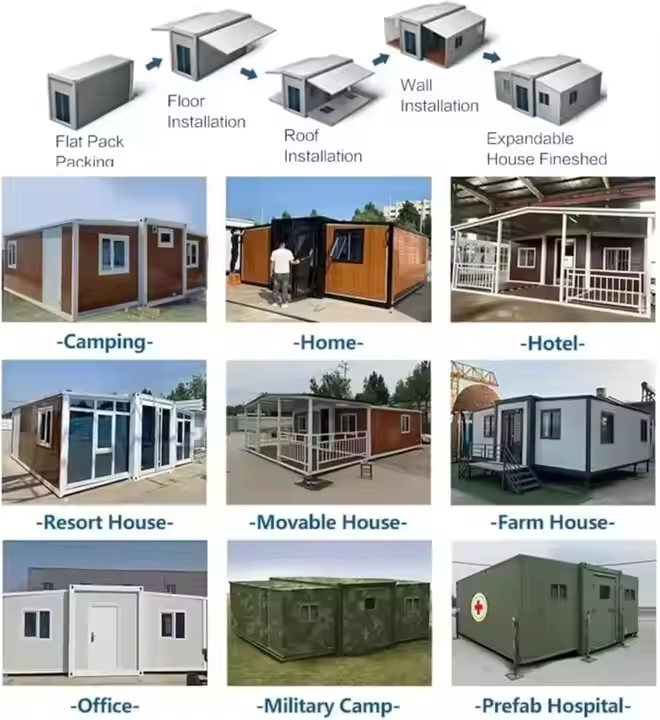

Function:
* Disaster shelters
* Granny flat
* Garden house
* Secondary dwelling
* Camp accommodation
* Rental housing * Farmhouse
* Family living house
Product Specification
Steel Structure
| Part Name | Specification | Remark |
| steel column | Steel panel 3mm thickness Bend part | |
| Main bottom beam | 150*75*3.0mm | |
| Main top beam | 12#*6mm | |
| Secondary beam | 80*80*2.0mm | |
| PANEL | galvanized steel corrugated sheet 1.0mm | |
| Bottom frame purlin | 80*40*2.0mm | |
Panel, Door and Window
| Ceiling | 1150×50×0.326mm double side Choi foam sandwich panel | |
| | (white and grey) |
| external wall panel | Bending piping 2.5mm+1150×50×0.326mm 0.326mm double side Choi foam sandwich panel (white and grey) | |
| Floor | Fireproof panel 15mm (yellow)+PVC grain board | |
| Door panel | 304 SS door (primary colours) | W*H: 1520mm*2200mm, 1 set |
| Sliding window | aluminium alloy sliding window (white) | W*H:930mm*1200mm, 8 sets |
Packing and shipping
The packing method for main steel frame use steel pallet, This method packing can better protect the steel frame, and alos the loading and unloading will be fast and convenient since it could be taken as a whole.(see attached photo). The best advantage can save the quantity of shipping contaier, so it will save the cost of ocean freight, save unlading time and cost.
Installation Instructions
Upon customer request, we could send our engineer to guide the installation, or a small team to install at the same time, teaching local workers to install, or enough workers to install all the goods by ourselves. It depends on whether the cost is economic.
As a leading accommodation container manufacturer, we supply a full range of prefabricated accommodation buildings to locations throughout Africa, Asia, Europe, The Americas, Europe, and the Middle East.KXD is a preferred prefabricated accommodation building manufacturer for many reasons, some of which include:
- They are quick to design, deliver, and install.
- We offer high-quality containers at a competitive price.
- KXD can supply containers to clients in more than 120 countries.
- Our team is on hand to support you through the entire design, manufacturing, and delivery process.
- We have specialist packaging systems to ensure the economical delivery of our living sites.
- Please contact us to learn more about our modular solutions.
